Product Introduction

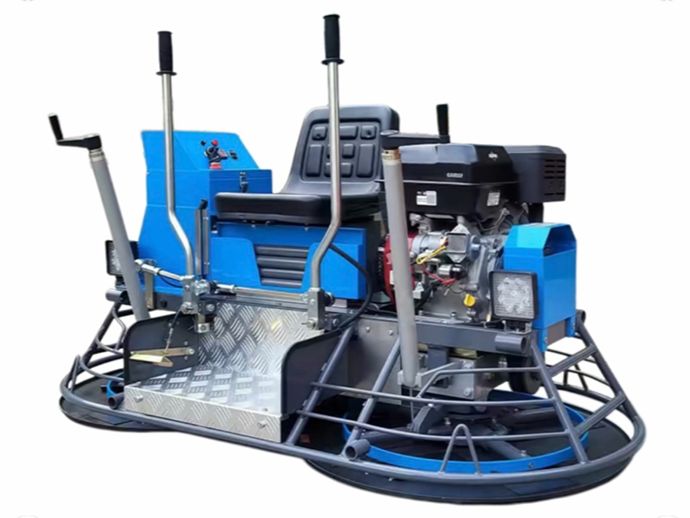

The ride-on concrete power trowel (twin-rotor finishing machine) is used for slurry lifting, compaction, leveling and finishing of large-area concrete floors. The operator sits on the machine and easily controls forward, reverse and steering through twin levers, performing precision finishing during the initial-to-final setting stage of the concrete to create a smooth, dense and wear-resistant surface. With about 3–5 times the efficiency of walk-behind trowels, it greatly reduces labor cost.
Key Features
Specification
| Item | Model 800 | Model 1000 | Model 1200 |
| Engine | Honda GX390 / Lifan | Honda GX690 / Lifan | Twin-cylinder gasoline engine |
| Rated Power | 9.6 kW (13 HP) | 17.6 kW (24 HP) | 27 kW (37 HP) |
| Engine Speed (r/min) | 3600 | 3600 | 3600 |
| Blade Speed (r/min) | 70–150 | 70–150 | 90–180 |
| Disc Speed (r/min) | 60–110 | 60–110 | 60–120 |
| Working Width (mm) | 1530 | 1910 | 2300 |
| Disc Diameter (mm) | 790 | 940 | 1100 |
| Number of Blades | 8 (2×4) | 8 (2×4) | 8 (2×4) |
| Blade Size (mm) | 350×150 | 360×150 | 360×150 |
| Fuel Tank Capacity (L) | 10 | 20 | 20 |
| Water Tank Capacity (L) | 20 (Optional) | 20 | 20 |
| Starting Method | Electric start | Electric start | Electric start |
| Operating Weight (kg) | 260 | 330 | 400 |
| Overall Dimensions L×W×H (mm) | 1700×900×1000 | 1980×990×1050 | 2300×1150×1100 |
| Working Efficiency (m²/h) | 1000–1500 | 1500–2500 | 2500–3500 |
Applications
-
1
High-standard workshops, warehouses and logistics centers
-
2
Underground garages and parking lots
-
3
Shopping malls, exhibition halls and stadiums
-
4
Airport runways and aprons
-
5
Plazas, concrete roads, bridge decks and road/bridge maintenance — suitable for large-area concrete floor finishing of all kinds.
Configuration & Service
-
1
English operation manual and maintenance instructions provided.
-
2
Full-machine commissioning at the factory; complete inspection and testing before shipment
-
3
Overseas online technical support, with video tutorials on installation, operation and troubleshooting.
-
4
Wear parts available in bulk supply, and spare parts can be shipped together with the machine in the same container.
