Trapezoidal Canal Slip‑form Machine

Product Introduction

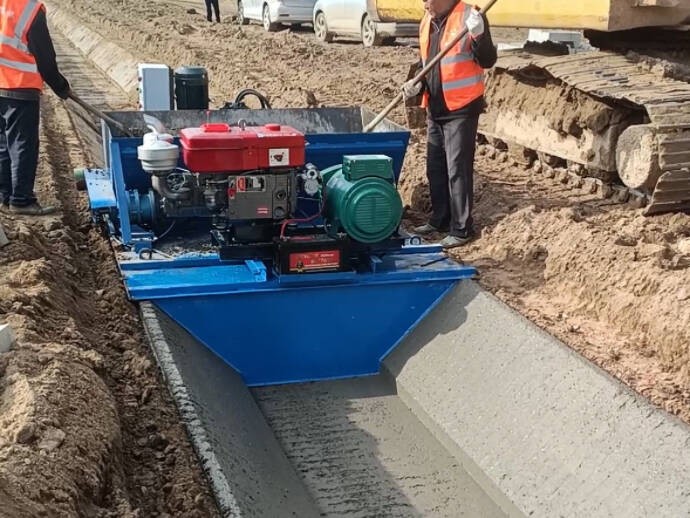

This is an efficient trapezoidal canal slip‑form machine for continuous casting of concrete trapezoidal canals. The machine travels forward automatically, completing material feeding, vibrating, extrusion forming and surface troweling in one pass. It eliminates formwork assembling and dismantling procedures, greatly cutting labor and material costs. The whole section of canal can be finished in a single run with high‑strength finished product, smooth inner wall and accurate dimensions. It is special cast‑in‑place concrete equipment for water conservancy projects.

Main Structure

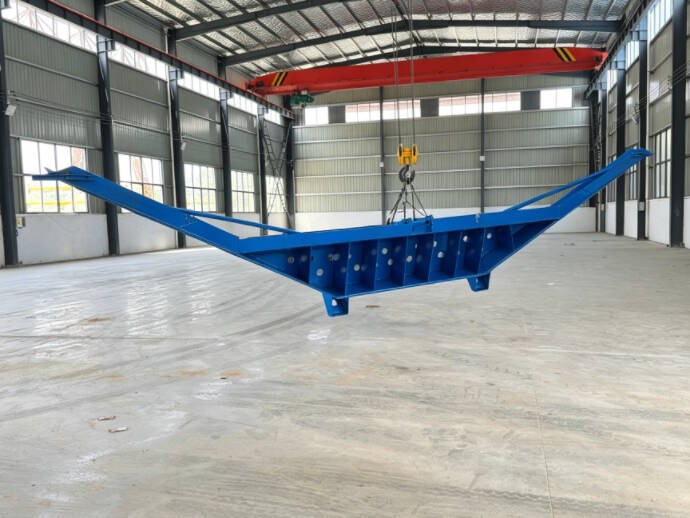

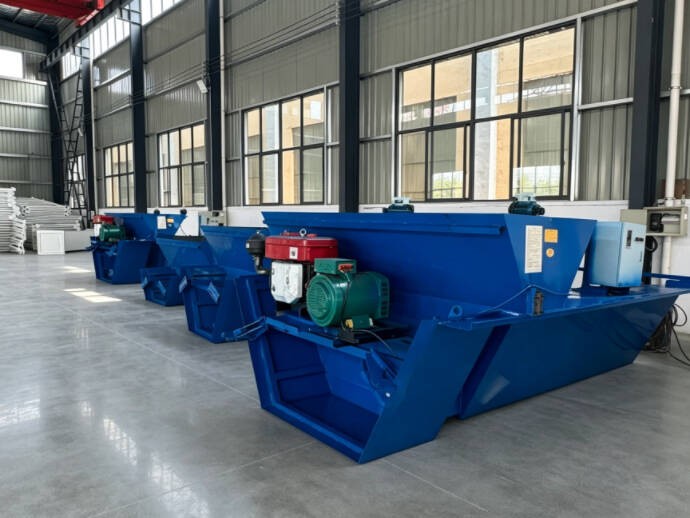

Trapezoidal forming mould: Customizable top width, bottom width, canal depth and wall thickness. Built‑in vibrators ensure dense concrete structure.
Power system: Dual‑power configuration of diesel engine and electric motor, suitable for construction sites with or without power supply.
Hydraulic travelling system: Hydraulic self‑propelled design. Travelling speed can be adjusted according to concrete working condition.

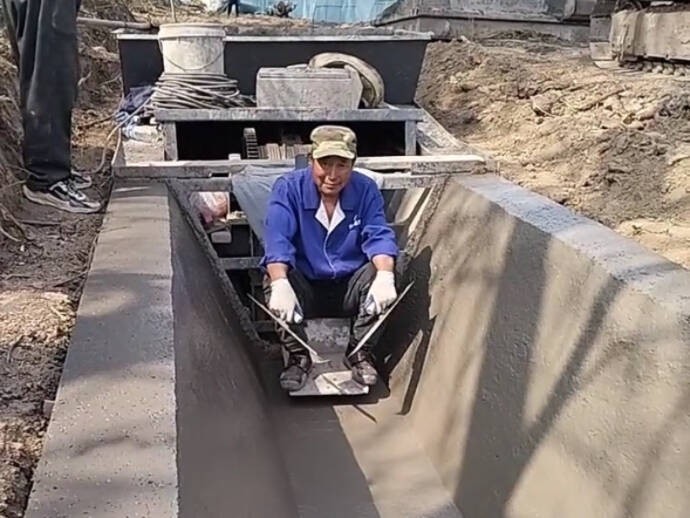

Hopper & troweling mechanism: Concrete can be fed by excavator or concrete mixer. The rear troweling unit delivers smooth canal surface and reduces secondary repair work.

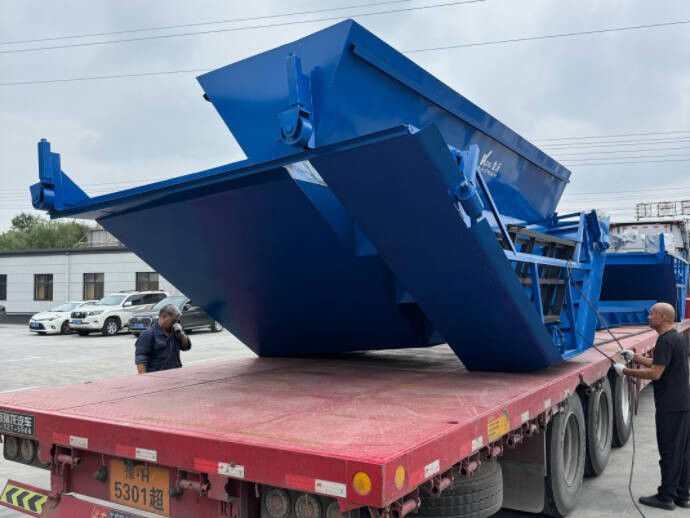

Heavy‑duty steel frame: Good adaptability for muddy and uneven construction sites.

Core Advantages

No formwork required

Daily forming output can reach hundreds to thousands of meters. Its working efficiency is more than 10 times that of traditional technology, which greatly shortens the construction period.

Stable product quality

The built‑in high‑frequency vibration system ensures highly compacted concrete. Combined with rear drag‑form troweling, the canal surface achieves mirror‑like finish with high water‑passing capacity. Monolithic casting without joints brings excellent anti‑seepage performance. The finished canal is free of honeycomb and pitting, with high frost‑resistance and impermeability. Its service life can last for decades.

Cost‑saving performance

It saves formwork materials and labor for formwork installation and removal, with little post‑construction repair work. Automated operation only requires a small number of operators and auxiliary feeding workers, significantly lowering labor cost and management difficulty.

Strong site adaptability

Diesel power supports field operation without grid power. Hydraulic chassis performs well on muddy ground.

Customization available

Cross‑section can be tailor‑made per drawings. It can produce trapezoidal canals with various top widths, bottom widths, depths and slope ratios to meet diverse project requirements.

Specification

Item	Specification
Applicable channel top width	400 mm – 3000 mm
Applicable channel depth	300 mm – 1500 mm
Concrete wall thickness	60 mm – 200 mm
Travel mode	Hydraulic self-propelled / Winch traction
Total power	15 – 30 kW, diesel or electric optional
Machine weight	2.5 – 8 tons
Working speed	30 – 80 m/h
Suitable concrete grade	C15 – C25

Application Scenarios

1

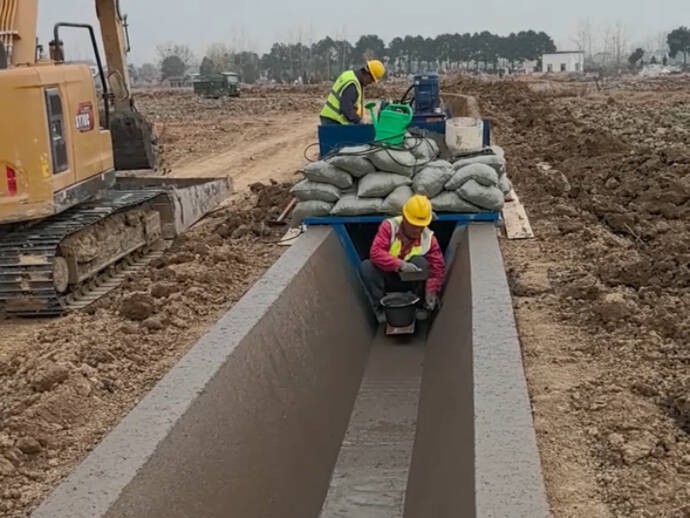

Farmland irrigation and water‑saving renovation projects
2
Subgrade side ditches and intercepting ditches for highways and railways
3
Municipal and landscape drainage channels
4
Land development and alkali‑drainage project

After-sales Service

1
Complete machine commissioning and inspection before delivery
2
English‑language operation manual provided
3
Online overseas technical support available
4
Spare‑parts supply; OEM customization is acceptable
