U‑shaped Canal Cast‑in‑place Forming Machine

Product Introduction

The U‑shaped canal forming machine is a self‑propelled cast‑in‑place slipform device. It completes one‑step concrete pouring for U‑shaped canals on‑site, removing the work of transporting and assembling pre‑cast components.

It is widely applied in farmland irrigation canals, river branch renovation, rural drainage ditches and slope‑protection channel construction. Canal top width, depth and wall thickness can be customized according to client requirements. Concrete is densely compacted with automatic surface finishing, which greatly cuts labor costs and improves working efficiency for water‑conservancy projects.

Core Advantages

One‑step Cast‑in‑place Forming

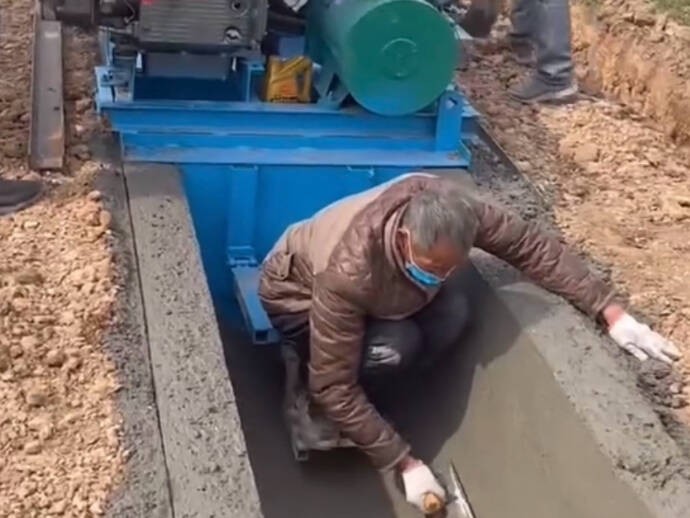

Concrete is fed into the hopper, and the canal takes shape as the machine moves forward. The canal wall is vibrated and finished automatically. The finished U‑shaped canal features good structural integrity and excellent anti‑seepage performance.

Labor Saving

Compared with traditional formwork construction, it greatly reduces workers for formwork erecting, stripping and plastering. Only 3‑4 workers are required for the whole construction process.

Stable Travel & User‑friendly Operation

Hydraulic self‑propelled model moves at constant speed; winch‑pulled model has adjustable travelling speed. Both versions adopt button‑control, easy‑to‑understand operation, perfectly suitable for field and farmland working sites.

High‑quality Finished Canal

The U‑shaped cross‑section enables smooth water flow and reduces sediment accumulation. Well‑vibrated concrete delivers good anti‑seepage and anti‑erosion performance for long service life.

Application Scenarios

1
Farmland irrigation canals
2
Rural drainage and sewage ditches
3
River branch renovation
4
Land improvement & high‑standard farmland construction
5
Small‑scale water diversion projects
6
Water diversion works

Note: Custom‑built U‑shaped canal forming machines can be manufactured based on customers’ drawings.

Working Principle

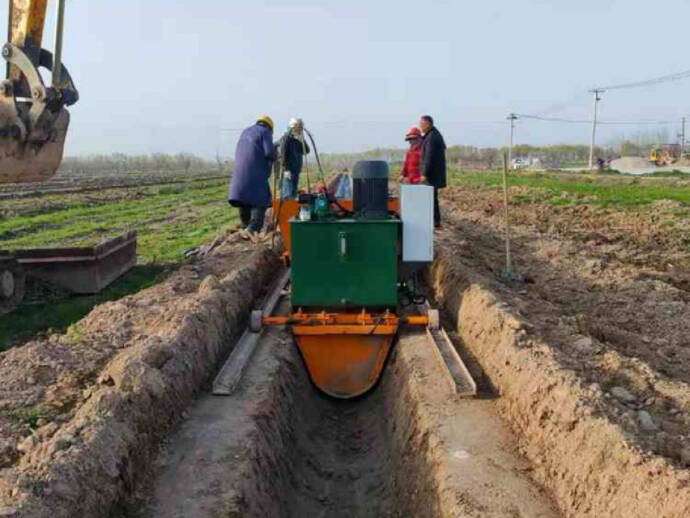

Use the matching digging bucket to excavate the U‑shaped earth trench. Place the machine inside the pre‑dug trench, then load concrete into the material hopper. The hydraulic system drives the machine to advance at a steady speed. The built‑in vibrator compacts concrete, the mould extrudes to form the U‑shaped inner wall, and the rear unit automatically finishes the surface. As the machine moves ahead, complete solid U‑shaped concrete canal comes out behind the equipment.

Specification

Item	Parameter
Channel shape	U-shape
Driving mode	Electric motor / Diesel engine optional
Forming method	Hydraulic self-propelled / Winch traction / Slipform one-time casting
Top width of channel	Customized
Channel depth	Customized
Concrete wall thickness	Customized
Travel mode	Hydraulic self-propelled / Winch traction
Suitable concrete	Ordinary commercial concrete / Site-mixed concrete
Note: We accept OEM & custom design according to client’s drawing.

Packing & Shipping

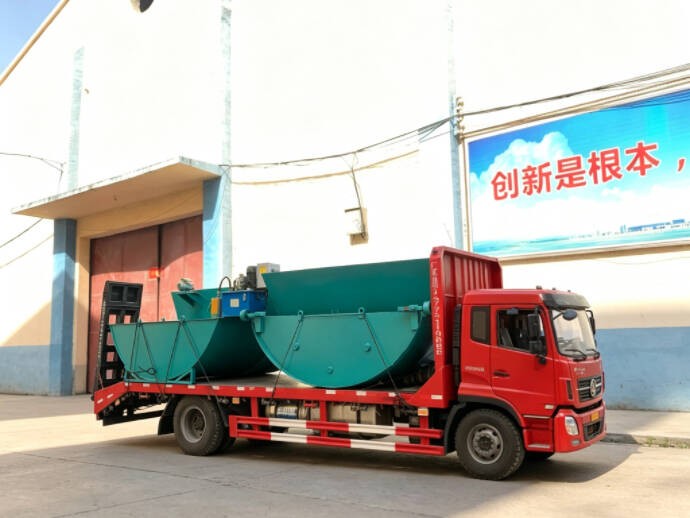

The whole machine is fixed on a steel base and wrapped with waterproof stretch film. Suitable for container or bulk truck shipment. Deliveries available to Central Asia, Thailand, Africa, Southeast Asia and other regions.

After-sales Service

1
Complete machine commissioning and inspection before delivery
2
English‑language operation manual provided
3
Online overseas technical support available
4
Spare‑parts supply; OEM customization is acceptable
