Product Introduction

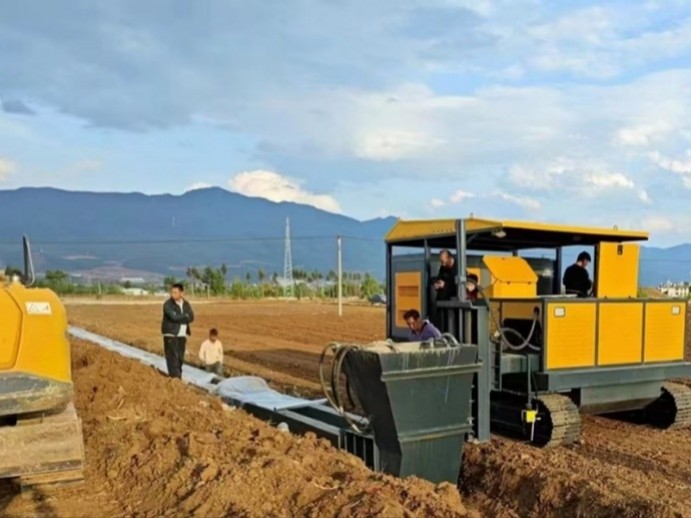

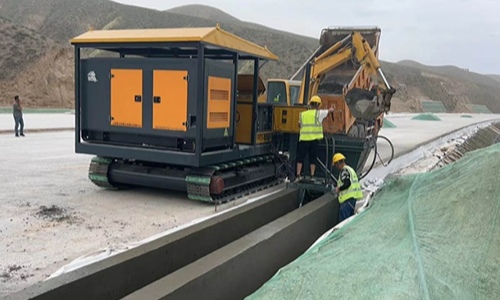

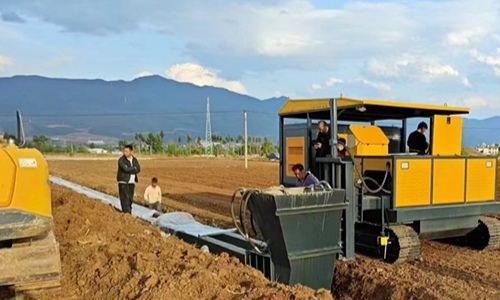

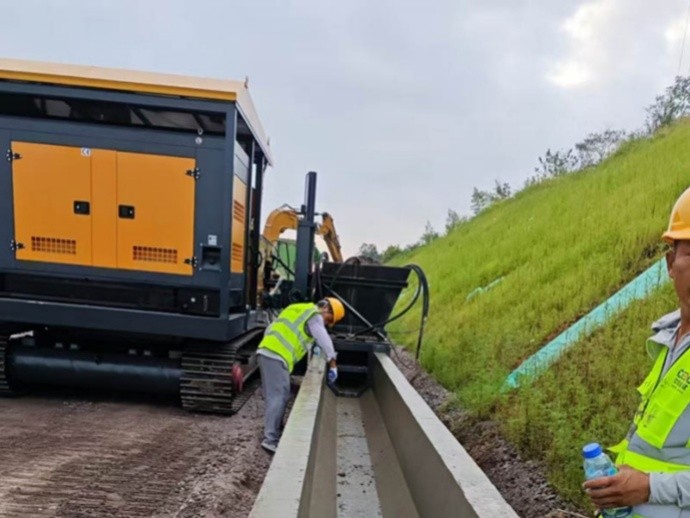

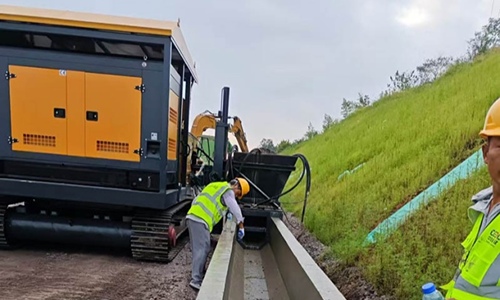

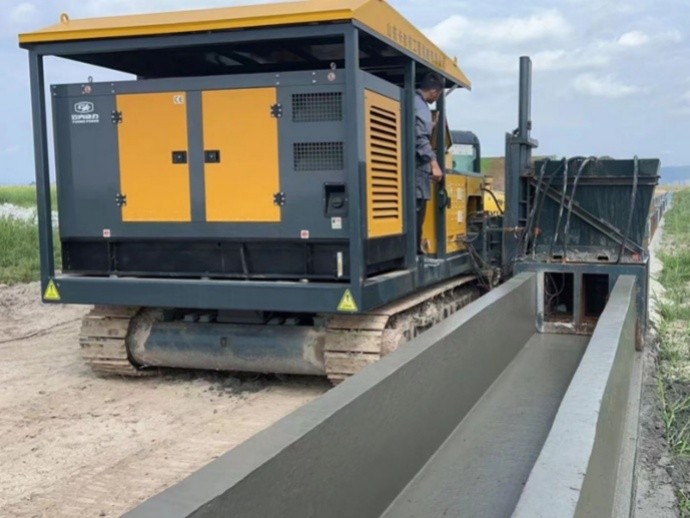

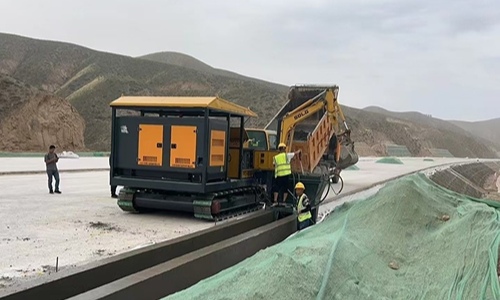

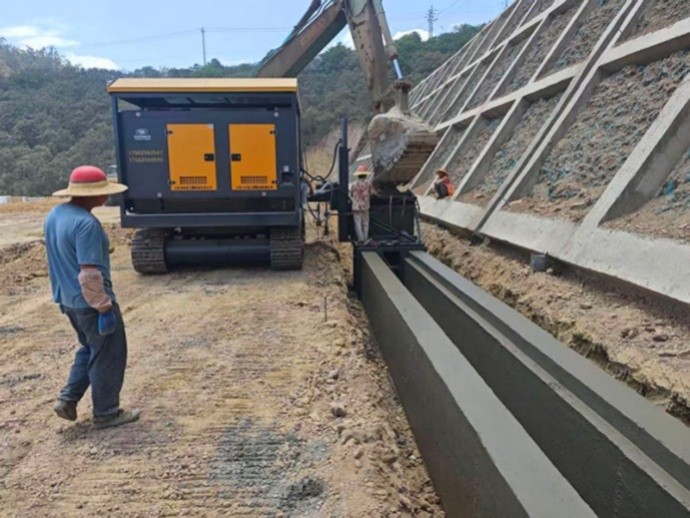

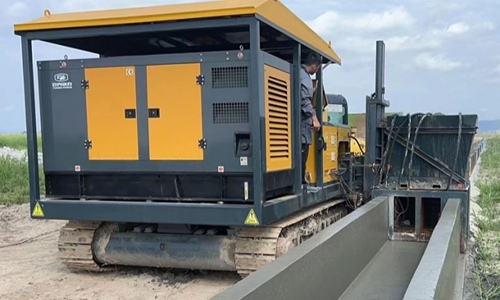

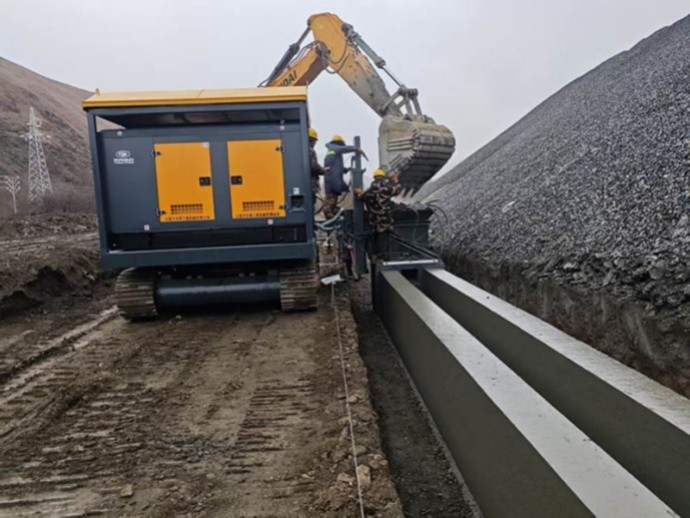

YT-HM2 Medium-Sized Slipform Machine Equipped with a high-power 100 KW generator set, it adopts dual-electric dual-drive plus four-stage reduction for powerful output torque, with a maximum climbing gradient of 23°. It achieves a maximum forming width of 2100 mm and a maximum forming height of 1300 mm, and the hopper size can be customized on demand. Featuring strong overall load-bearing capacity and automatic continuous pouring, it is suitable for high-standard concrete slipform projects such as medium-and-large-sized canals, dike ditches and large anti-collision walls.
Heavy-duty for Large-section Works, Maximized Construction Efficiency
Powered by a 136-horsepower diesel engine and a 100 KW generator set, the machine has an overall weight of 17.5 tons. It delivers a maximum forming width of 2100 mm and a maximum forming height of 1300 mm, well-suited for large-section projects including large scale canals, slope protection works and wide-width anti-collision walls.
Powerful Drive for Complex Terrain
Adopting dual-electric dual-drive and four-stage reduction system, it delivers a high torque of 96000 N·m with a maximum climbing capacity of 23°. The traveling speed ranges from 0-7 m/h and construction speed from 0-5 m/h. It maintains stable operation without slipping when working on steep slopes and complex terrains.
Custom-adaptable & Flexible Construction
The hopper capacity and feeding height can be adjusted according to requirements. Custom-modified molds are available to match the cross-section dimensions of various projects, satisfying customized construction demands for large-scale water conservancy and municipal engineering.
Core Advantages
Specification
| Parameter | Specification |
|---|---|
| Overall Dimensions | |
| Transportation Dimensions (L×W×H) | 4300 × 3250 × 3150 mm |
| Traveling Width | 2800 mm |
| Minimum Working Width | 3400 mm |
| Maximum Working Width | 4800 mm |
| Weight Parameters | |
| Overall Weight | 17.5 T |
| Maximum Working Weight | 26 T |
| Hopper Parameters | |
| Maximum Capacity | Adjustable on Demand |
| Hopper Feeding Height | Adjustable on Demand |
| Generator Set Parameters | |
| Diesel Engine Power | 136 HP |
| Generator Power | 100 KW |
| Frequency | 50 Hz |
| Traveling System | |
| Drive Mode | Dual-Electric Dual-Drive |
| Reducer Type | Four-Stage Reduction |
| Torque | 96000 N·m |
| Climbing Angle | ≤ 23° |
| Traveling Speed | 0 – 7 m/h |
| Construction Speed | 0 – 5 m/h |
| Machine Parameters | |
| Fuel Tank Capacity (Diesel) | 280 L |
| Fuel Consumption | 9 L/h |
| Construction Mode | Automatic |
| Construction Speed Adjustment | Stepless Adjustable |
| Maximum Forming Height | 1300 mm |
| Maximum Forming Width | 2100 mm |
| Note: Parameters are for reference only. Actual specifications are subject to change with equipment updates. | |
