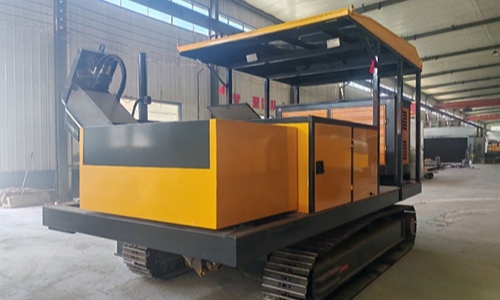

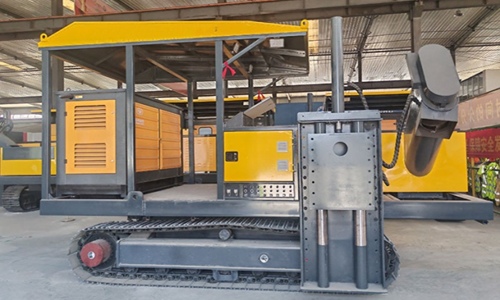

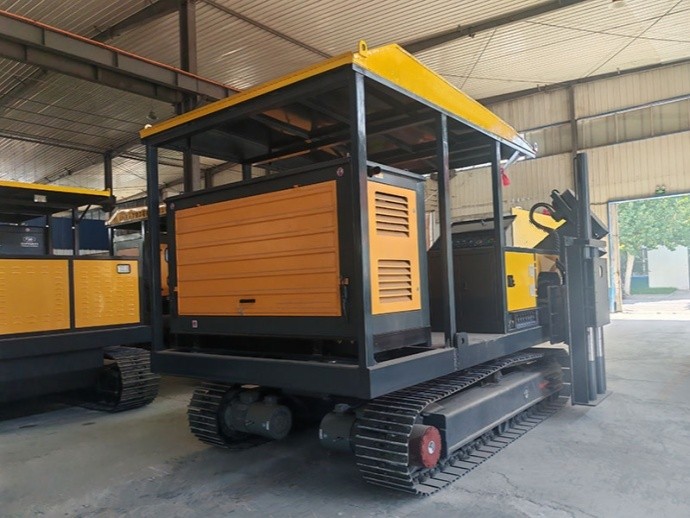

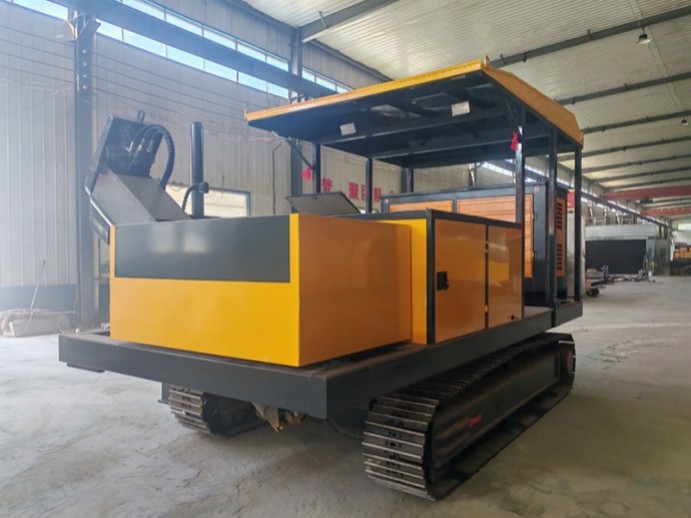

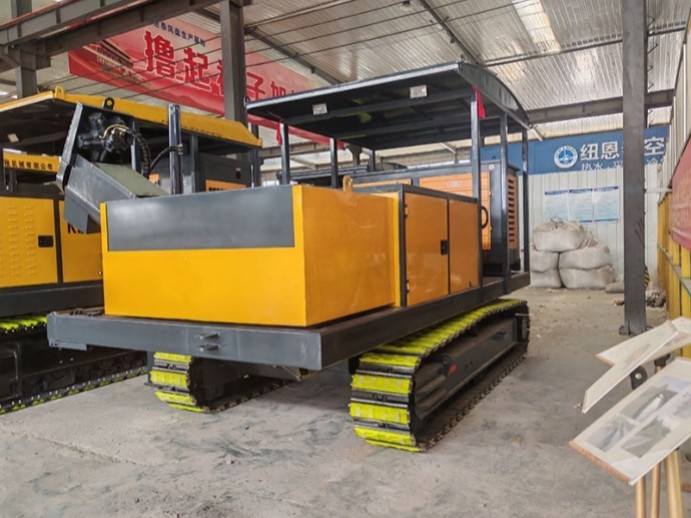

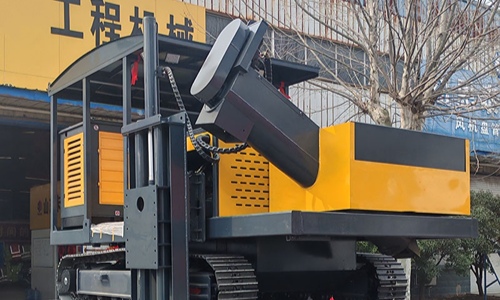

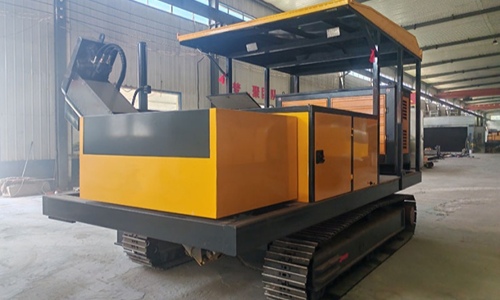

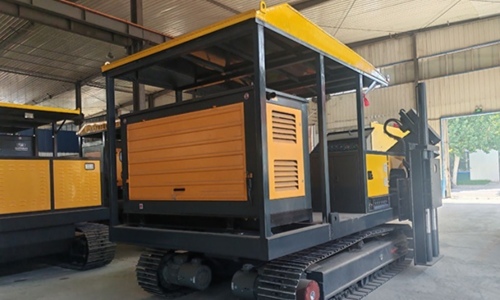

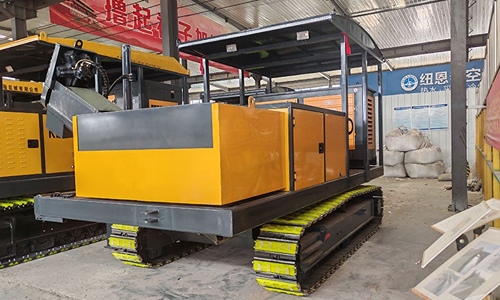

YT-HM1 Mini Concrete Slipform Paver

Product Introduction

YT-HM1 Mini Concrete Slipform Paver Fitted with a 50 KW generator set, this machine adopts electric drive together with a two-stage reduction system. It has an overall weight of 11 tons and a climbing capacity of up to 17°. The forming width ranges from 50-1400 mm and the forming height from 50-800 mm. It features stepless adjustable construction speed with fuel consumption as low as 6 L/h. Thanks to its compact and flexible body, it is suitable for constructing mediumsmall canals, road curbs and small protective walls, making it a cost-effective option for light-duty working conditions.conditions.

Universal Configuration for Broad-scope Applications

Equipped with 50 KW standard power unit and featuring an overall weight of 11 tons, the machine delivers a maximum forming width of 1600 mm and maximum forming height of 1500 mm. It covers most conventional infrastructure projects such as small-and-medium-sized canals, road curbs, water-retaining belts and anti-collision walls, offering excellent versatility.

Stable Drive & High Construction Accuracy

Electric drive combined with two-stage reduction system, torque reaches 34000 Nm, maximum climbing capacity up to 17°, adjustable construction speed: 0-4 m/h. The built-in highfrequency vibration system ensures dense concrete forming with uniform and stable strength of finished products.

Cost-effective & Low Operation-Maintenance Cost

Featuring a large-capacity 280L fuel tank, the machine achieves fuel consumption of only 6 liters per 100 kilometers and supports long-duration continuous operation. With simplified structural design and readily-available wearing-part supplies, it delivers low-cost after-sales maintenance and outstanding cost-performance.

Core Advantages

Wide Range of Applicable Scenarios

Capable of constructing various structures including curbs, anti-collision walls, drainage ditches, trapezoidal channels, and water-retaining belts. One machine serves multiple purposes simply by changing molds, meeting full-range construction requirements for municipal roads and water conservancy projects.

Low Operation Threshold

Equipped with electro-hydraulic adjustment and horizontal leveling control systems. The operation logic is straightforward. Skilled workers can get on-the-job after short-term training, greatly lowering operational barriers and training costs.

Stable Finished-product Quality

The built-in extrusion and vibration system works synchronously to fully compact cast-in-situ concrete. It effectively prevents defects such as honeycombing, voids and edge collapse. The finished concrete features uniform strength with extremely low later-stage maintenance costs.

Convenient Relocation & Transportation

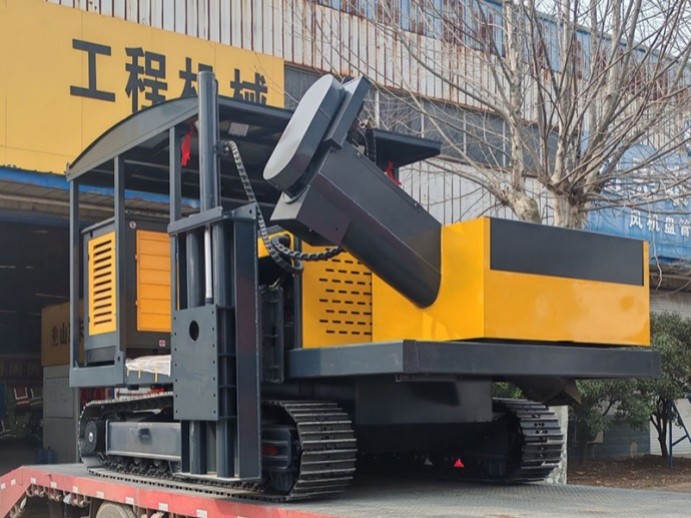

Overall machine dimension: 5000×2550×3150 mm. Compact in size, the machine can be transported directly in compliance with traffic regulations. It enables flexible short-distance relocation on-site, suitable for narrow job-sites and scattered field projects.

Specification

Parameter	Specification
Overall Dimensions
Overall Dimensions (L×W×H)	5000 × 2550 × 3150 mm
Traveling Width	2300 mm
Minimum Working Width	2650 mm
Maximum Working Width	3950 mm
Weight Parameters
Overall Weight	11 T
Maximum Working Weight	16 T
Generator Set Parameters
Motor Power	50 KW
Frequency	50 Hz
Traveling System
Drive Mode	Electric Drive
Reducer Type	Two-stage Reduction
Torque	34000 Nm
Climbing Angle	≤ 17°
Traveling Speed	0 – 5 m/h
Construction Speed	0 – 4 m/h
Machine Parameters
Fuel Tank Capacity (Diesel)	280 L
Fuel Consumption	6 L/h
Construction Mode	Automatic
Construction Speed Adjustment	Stepless Adjustable
Maximum Forming Height	800 mm
Minimum Forming Height	50 mm (subject to width)
Maximum Forming Width	1400 mm
Minimum Forming Width	50 mm (subject to height)
