Product Introduction
A heavy-duty model with an overall weight of 16.5 tons. Its steel tracks deliver outstanding load-bearing capacity, adapting to harsh and complex job-sites such as muddy ground and mountainous areas. Equipped with 100 KW power, dual-electric dual-drive and four-stage reduction system, it achieves maximum forming dimensions of 2100 mm in width and 1300 mm in height, with a maximum climbing capacity of 23°. It is specially designed for heavy-load and long-distance continuous construction projects including large-scale main water conservancy canals, mountain slope protection and large retaining walls.

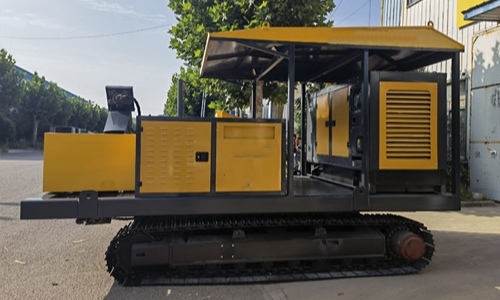

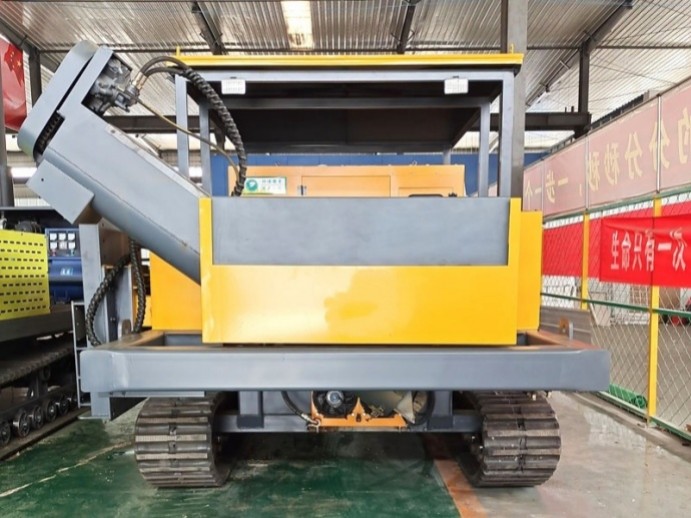

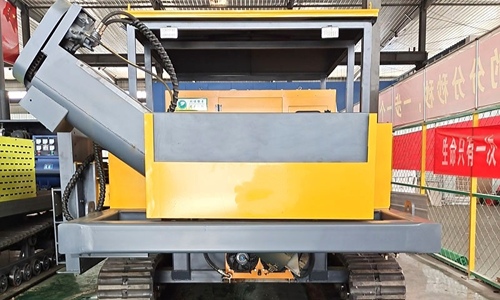

Steel Tracks, Ultimate Stability for Ultra-heavy-load Operations
Adopting a heavy-duty steel-track chassis, the machine has an overall weight of 16.5 tons and a maximum working weight of 26 tons. It features high ground-contact strength and superior load-bearing capacity, suitable for engineering construction under ultra-heavy-load, high-torque and harsh working conditions with excellent stability.
Top-tier Power for Extreme Working Conditions
Powered by a 136-horsepower diesel engine and a high-output 100 KW generator set, it adopts dual-electric dual-drive with four-stage reduction, delivering torque up to 96000 N·m and a maximum climbing capacity of 23°. It can handle steep slopes, rocky terrain and extreme field construction scenarios.

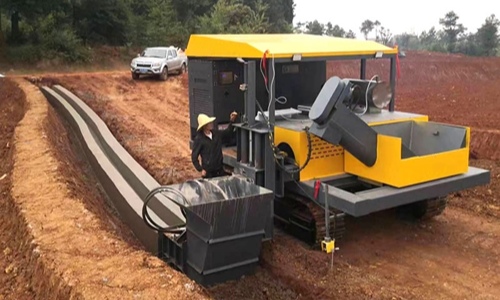

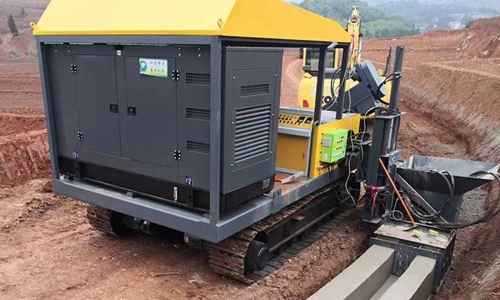

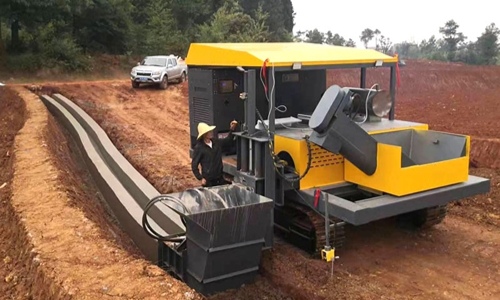

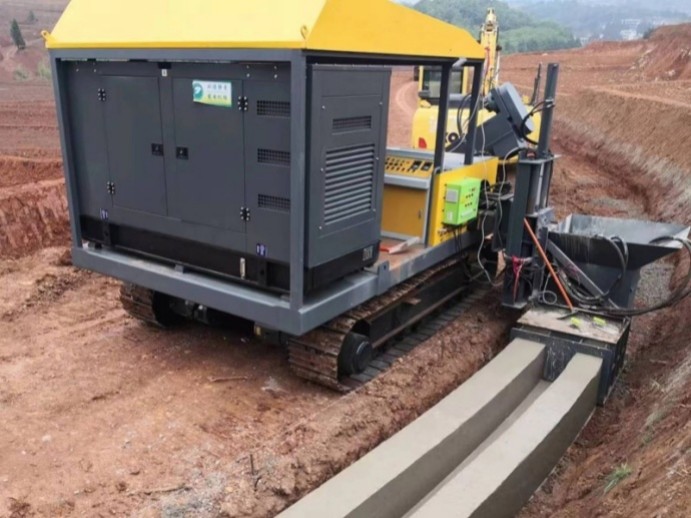

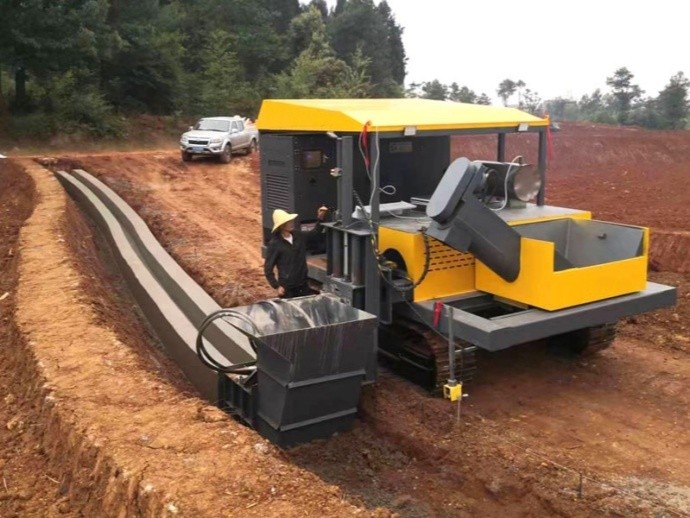

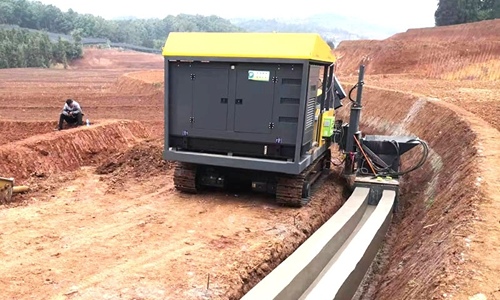

Large-size Forming for Large-scale Projects
Maximum forming width: 2100 mm, maximum forming height: 1300 mm, maximum working width: 4800 mm. Equipped with a hopper feeding height of 1400 mm, it is compatible with large feeding equipment and satisfies the construction requirements of large scale water conservancy and high-slope protection projects.
Core Advantages
Specification
| Parameter | Specification |
|---|---|
| Overall Dimensions | |
| Transportation Dimensions (L×W×H) | 5000 × 3250 × 3150 mm |
| Traveling Width | 2800 mm |
| Minimum Working Width | 3400 mm |
| Maximum Working Width | 4800 mm |
| Weight Parameters | |
| Overall Weight | 18.5 T |
| Maximum Working Weight | 26 T |
| Hopper Parameters | |
| Maximum Capacity | 0.8 m³ |
| Hopper Feeding Height | 1400 mm |
| Generator Set Parameters | |
| Diesel Engine Power | 136 HP |
| Generator Power | 100 KW |
| Frequency | 50 Hz |
| Traveling System | |
| Drive Mode | Dual-Electric Dual-Drive |
| Reducer Type | Four-Stage Reduction |
| Torque | 96000 N·m |
| Climbing Angle | ≤ 23° |
| Traveling Speed | 0 – 7 m/h |
| Construction Speed | 0 – 5 m/h |
| Machine Parameters | |
| Fuel Tank Capacity (Diesel) | 280 L |
| Fuel Consumption | 9 L/h |
| Construction Mode | Automatic |
| Construction Speed Adjustment | Stepless Adjustable |
| Maximum Forming Height | 1300 mm |
| Maximum Forming Width | 2100 mm |
| Note: Parameters are for reference only. Actual specifications are subject to change with equipment updates. | |
