YT-HM3 Rubber-track Slipform Paver

Product Introduction

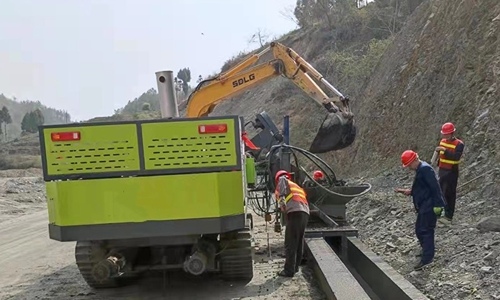

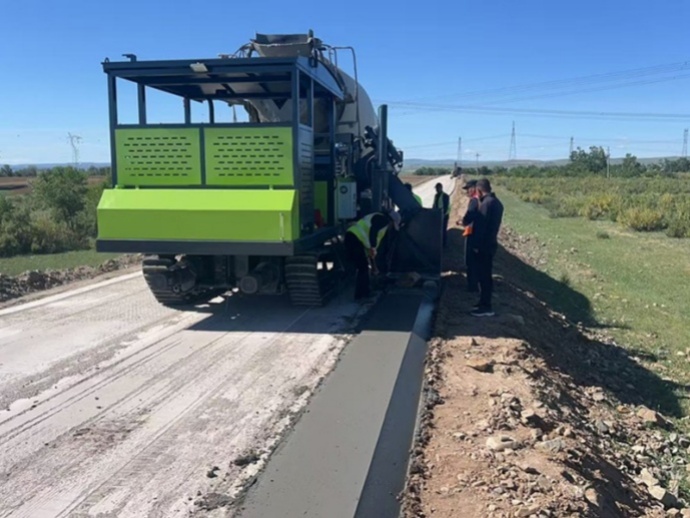

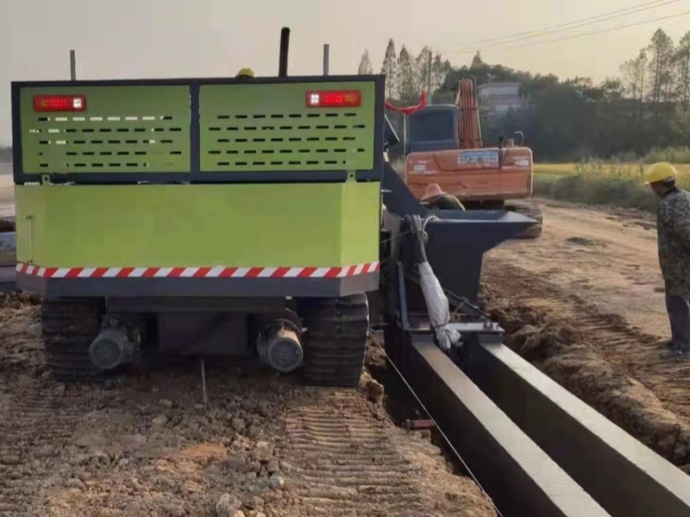

Weighing 8 tons, this machine adopts rubber tracks with low ground-contact pressure, so it barely damages original roadbeds and pavements. It is equipped with a 50 KW power system and a standard 0.8 m³ hopper, with a maximum forming width of 1200 mm and maximum forming height of 800 mm. It runs smoothly with lower noise, making it wellsuited for municipal roads, soft-subgrade sites and rural water conservancy projects, balancing traveling performance and forming efficiency.

Rubber Tracks, Ground-friendly Without Surface Damage

Featuring a dedicated rubber-track chassis and an 8-ton lightweight main body with a traveling width of 2200 mm, the machine delivers low ground specific pressure. It will not damage road surfaces, farmlands or soft roadbeds during construction, and is suitable for working scenarios with groundprotection requirements.

Flexible & Efficient, Easy Relocation

Powered by a 68-horsepower diesel engine and a 50 KW generator set, the machine features dual-electric dual-drive with two-stage reduction. It has a traveling speed of 0-7 m/h and a construction speed of 0-5 m/h. Compact-bodied for flexible relocation, it is ideal for fast mobilization and operation in medium- and small-scale projects.

Cost-effective with Low Operation & Maintenance Cost

It is equipped with a 240L fuel tank, fuel consumption of only 6L per 100 kilometers, a standard 0.8 m³ hopper and a hopper feeding height of 1300 mm. Compatible with conventional feeding equipment, it features a simpletomaintain structure and low long-term operation-maintenance expenses.

Core Advantages

Excellent Ground-protection Performance

Designed with a rubber-track chassis, it delivers large ground-contact area and low specific pressure. It will not damage existing roads, farmlands or lawns during construction, making it suitable for projects requiring ground protection, such as municipal roads, scenic spots and farmland water conservancy works.

Light-weight & High Flexibility

Weighing only 8 tons, with transport dimensions of 5000×2950×3150 mm, it enables convenient relocation and transportation. Its maximum traveling speed reaches 7 m/h for flexible on-site movement, perfectly meeting fast-operation requirements for narrow job-sites and scattered projects.

Simple & User-friendly Operation

Adopting dual-electric dual-drive control system together with electro-hydraulic adjustment, it has intuitive operation logic. New operators can master it after short-term training. The standard-equipped 0.8 m³ hopper fits regular feeding procedures, greatly lowering the operation threshold.

Outstanding Fuel Economy

Fitted with a large-capacity 240L fuel tank, it consumes only 6 L per 100 km for long endurance and low fuel cost. Combined with the two-stage reduction system, power loss is minimized to further cut overall project construction costs.

Specification

Parameter	Specification
Overall Dimensions
Transportation Dimensions (L×W×H)	5000 × 2950 × 3150 mm
Traveling Width	2200 mm
Minimum Working Width	3000 mm
Maximum Working Width	4100 mm
Weight Parameters
Overall Weight	8 T
Maximum Working Weight	11 T
Hopper Parameters
Maximum Capacity	0.8 m³
Hopper Feeding Height	1300 mm
Generator Set Parameters
Diesel Engine Power	68 HP
Generator Power	50 KW
Frequency	50 Hz
Traveling System
Drive Mode	Dual-Electric Dual-Drive
Reducer Type	Two-Stage Reduction
Climbing Angle	≤ 13°
Torque	9600 N·m
Construction Speed	0 – 5 m/h
Traveling Speed	0 – 7 m/h
Machine Parameters
Fuel Tank Capacity (Diesel)	240 L
Fuel Consumption	6 L/h
Construction Mode	Automatic
Construction Speed Adjustment	Stepless Adjustable
Maximum Forming Height	800 mm
Maximum Forming Width	1200 mm
Note: Parameters are for reference only. Actual specifications are subject to change with equipment updates.
